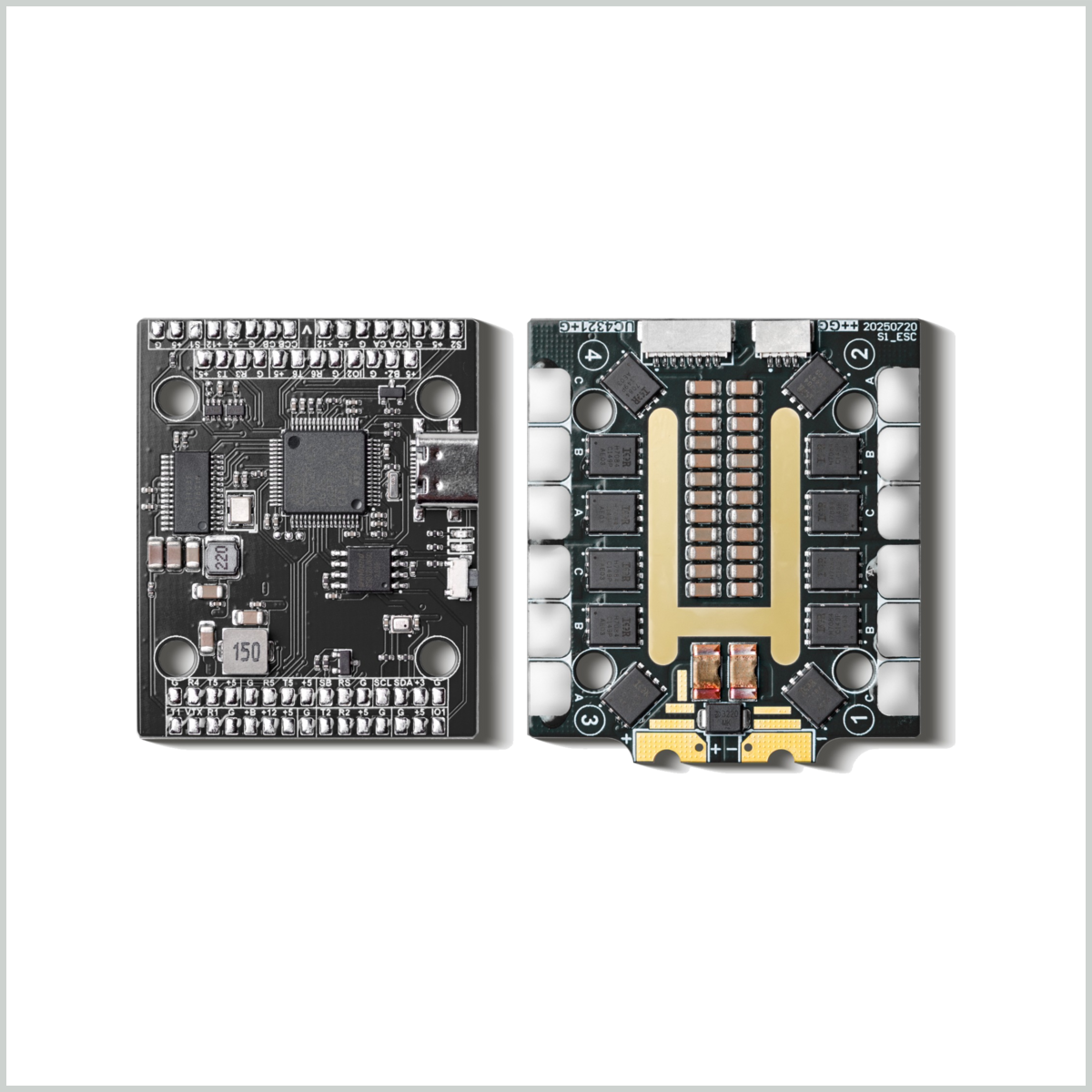

S1 6S — FPV controller flight stack
DescriptionDetails & specsAttachments
Manufactured in NATO-aligned countriesPowered by AM32 Software in partnership with Alka MotorsBetaflight-compliant
Leading-level components:
Delivery set:1. FC board — 1 pc.2. ESC board — 1 pc.3. Low-ESR capacitor 1500 µF / 35 V — 2 pcs.4. XT60H connector with 12 AWG cables — 1 pc.5. Cable JST-SH 1.0 mm, 8-pin, 40 mm — 1 pc.6. Nylon nuts M3 — 4 pcs.7. Silicone O-rings M3 — 8 pcs.8. Silicone dampers M3×8 mm (for FC) — 4 pcs.9. Silicone dampers M3×6.6 mm (for ESC) — 4 pcs.10. M3×30 mm Allen screws — 4 pcs.
Leading-level components:
- High-precision electronics – European STM32F405 & STM32F051 guarantee stability and accuracy of operation
- Reliability Built In – Each module is tested to standards compatible with NATO requirements, which guarantees durability and stable operation.
- Modern sensors – Guaranteed high accuracy with ICM-42688-P, BMP280/DPS310 barometers, QMC5883 magnetometers
Delivery set:1. FC board — 1 pc.2. ESC board — 1 pc.3. Low-ESR capacitor 1500 µF / 35 V — 2 pcs.4. XT60H connector with 12 AWG cables — 1 pc.5. Cable JST-SH 1.0 mm, 8-pin, 40 mm — 1 pc.6. Nylon nuts M3 — 4 pcs.7. Silicone O-rings M3 — 8 pcs.8. Silicone dampers M3×8 mm (for FC) — 4 pcs.9. Silicone dampers M3×6.6 mm (for ESC) — 4 pcs.10. M3×30 mm Allen screws — 4 pcs.
Dimensions
FC – 40*49.5 mm | ESC – 46.5*52.5 mm
Weight
FC – 12 g | ESC – 24 g
Magnetometer
Support for external QMC5883 module (custom firmware possible)
Barometer
BMP280 or DPS310
6-axis IMU
ICM-42688-P (gyroscope + accelerometer)
High-speed logging support
Gyroscope, PID, system telemetry
Integrated SPI Flash memory
Blackbox log, 128 Mbit, no moving parts
Input voltage
4S–6S (12–26 V)
Maximum continuous current
65A
ESC
STM32F051 (AM32 firmware)
Flight controller
STM32F405 (supports Betaflight and ArduPilot)
Processor
NDAA compliant, European chipset
